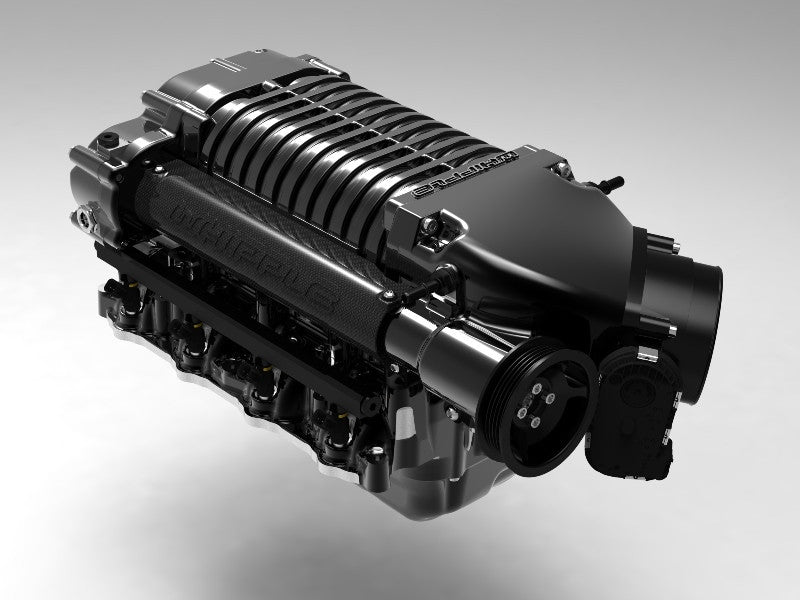

2011-2014 Ford Mustang GT Stage 2 SuperCharger Kit

$10,580.00

Description
Features
Extra Options

Shipping charges not included in price.

If you want the most advanced, most powerful, most upgradeable and highest quality system available, then here it is! Whipple Superchargers has yet again set a new precedence for bolt-on power and industry leading durability. With now 3 options, Stage 1, 2 and 3 to better fit each customer's appetite for power! The incredible Stage 1 system boast 700HP on 91-octane fuel with only 8.5psi of boost! That's right, Whipple's Stage 1 is more power than other's Phase 3's! Available for both the manual and auto transmission, the new Whipple system is truly a game changer.

Nobody puts more time and resources into the development then Whipple. The proof is in the product, more power per lb of boost than any other system. The key to making such incredible reliable power is in the Whipple unique twin screw supercharger, massive air-to-water intercooler, oversized front feed Crusher air system and innovative PCM programming that keeps the power-train safe and secure. Whether you’re looking for a daily driver that needs a little more punch or you’re craving a tire-frying, rubber shredding street machine, the Whipple Supercharger systems delivers like no other SC system today. Power from tip in to redline, the new Whipple SC system makes incredible power across the entire rpm range while maintaining industry leading drive-ability.

With years of OEM and racing experience, Whipple engineers have developed a unique PCM calibration that reconfigures all the necessary engine functions including fuel, spark, knock detection, torque management, transmission control and electronic throttle control. The vehicles PCM constantly monitors the engines torque output while monitoring many different parameters to keep the engine in it’s ideal parameters. If a parameter falls below specification, the PCM will lower torque output until the problem can be cured. No other supercharger system has such technology, giving the Whipple SC system unheralded performance and reliability.

No other upgrades required, just massive power right out of the box

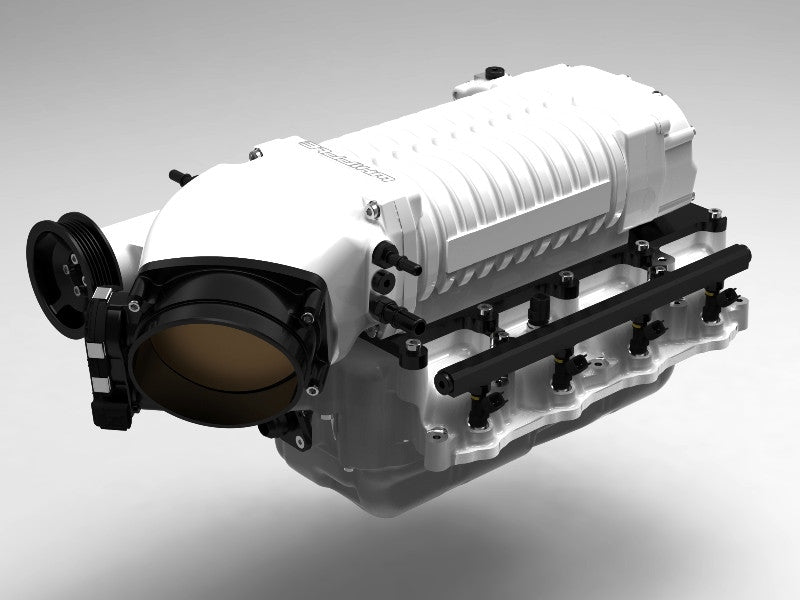

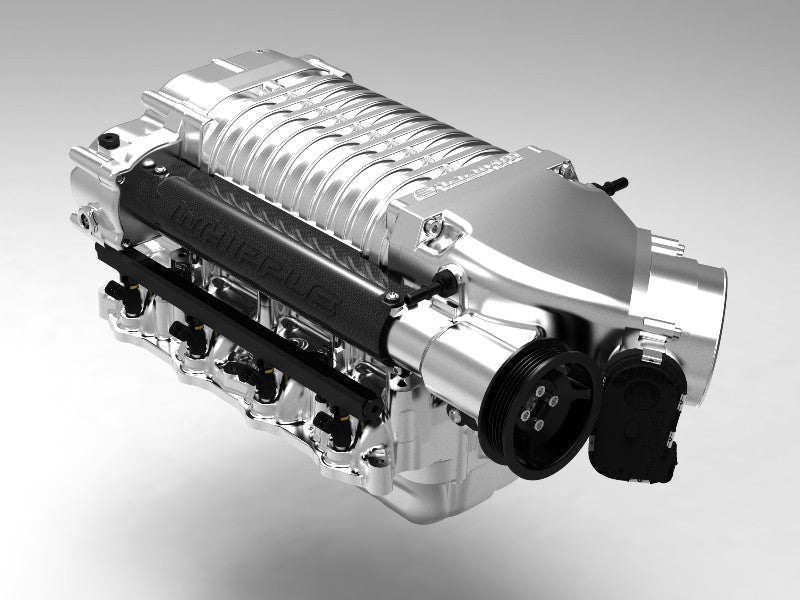

Front entry W175ax (2.9 liters) Whipple twin-screw supercharger that significantly outperforms competitions 1.9L and 2.3L roots-type systems
2.9L 26% larger than 2.3L roots-type
Front feed supercharger utilizes precision ground helical cut gears vs a problematic belt

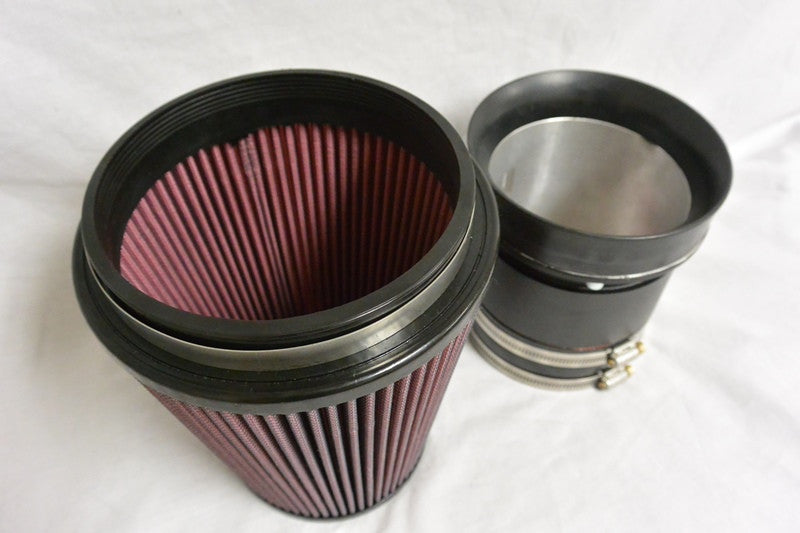

Oversized Crusher™ inlet for maximum airflow capacity and minimal rotor cavitation
Front feed allows for oversized intercooler core compared to other smaller intercooler cores giving Whipple lower air charge temps which allows more boost and timing to be run on pump gas

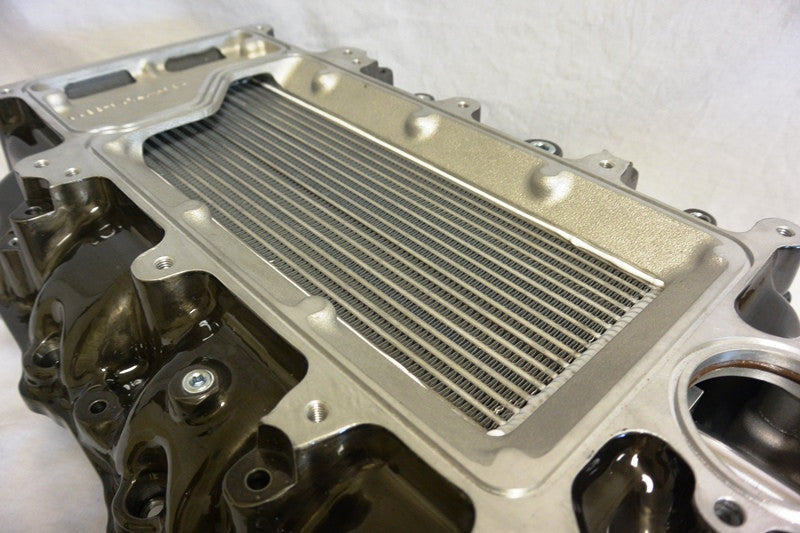

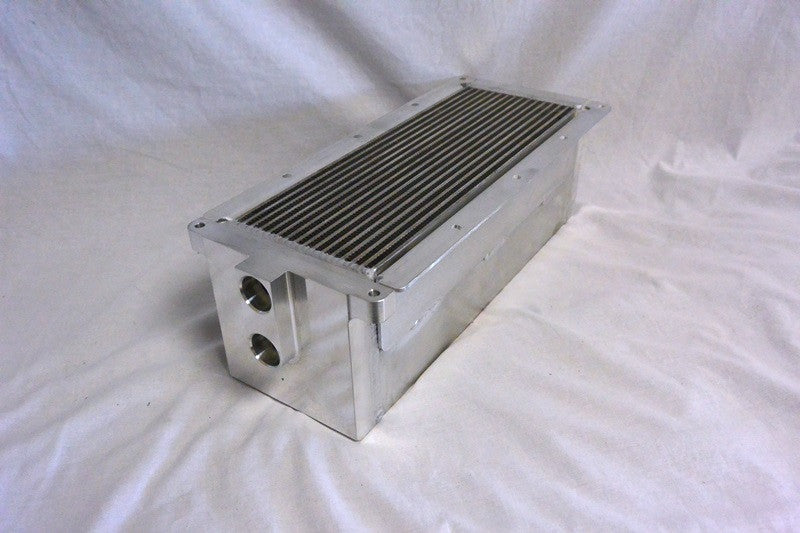

Massive air-to-water aluminum bar-plate intercooler offers more cooling than any other positive displacement system available, nothing comes close
Massive intercooler heat exchanger, nearly 150% more volume then some competitors
Optional dual 11" Spal electric fans

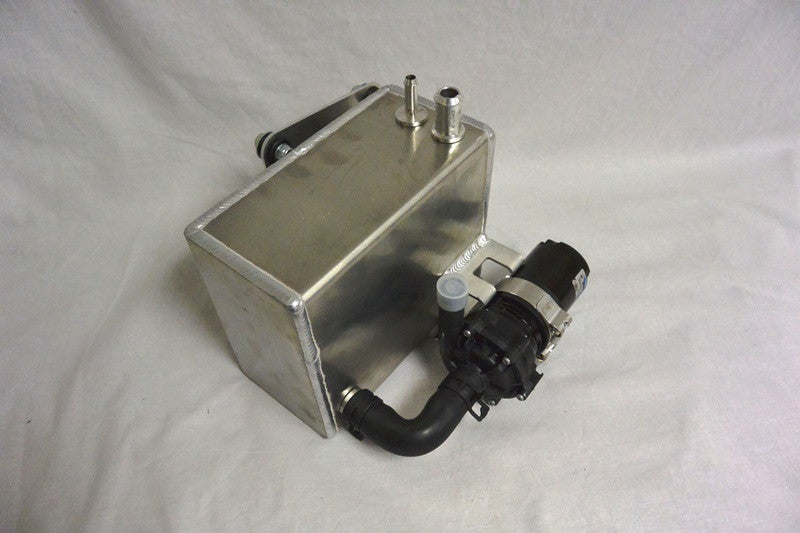

Massive oversized aluminum intercooler reservoir (over 2 gallons) holds more than double any competitors IC water system allowing longer more consistent power
High flow intercooler pump, nearly double the flow of the standard units others use
Whipple Superchargers massive oversized intercooled air-bypass system for industry leading reduction of burst knock and incredible fuel economy
Plug and play fuel pump booster for increased fuel flow
Billet fuel rails, hard coat anodizied and laser engraved
58lb/hr dual pattern fuel injectors vs smaller 47lb/hr injectors for more power
Self-contained oversized oil system for dramatically reduced oil temps in even the most demanding conditions

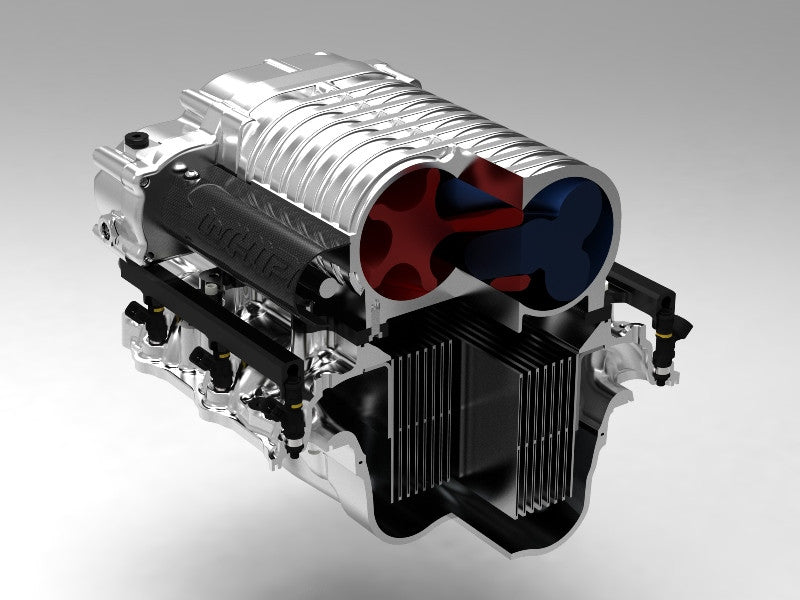

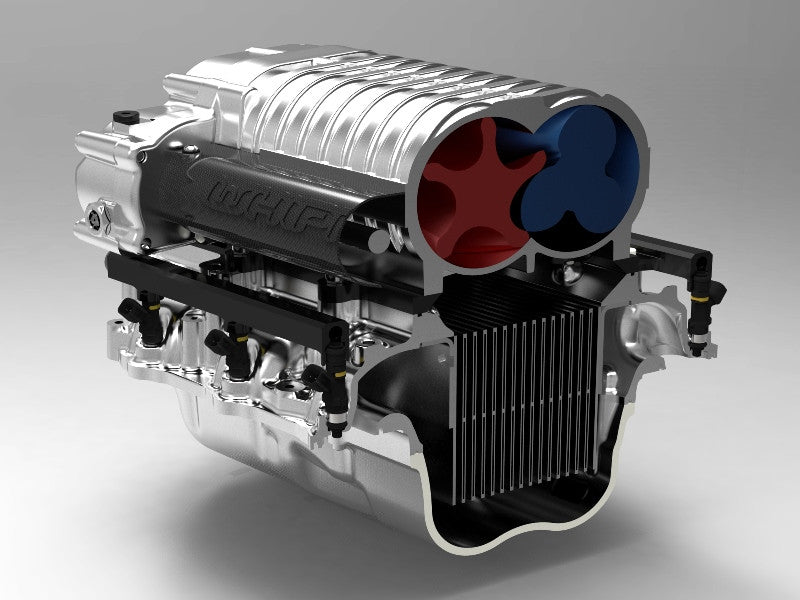

Exclusive 3x5 rotor combo for significant increase in airflow under the curve than less efficient 4x6 rotor combo or 4x4 roots
Center discharge port for better cylinder to cylinder distribution then other twin-screws with cobbled together billet adapters and forward facing discharge
W175ax SC bottom is open for increased plenum volume and better over-intercooler air distribution giving more intercooler effectiveness
Extra plenum volume below intercooler core for far less pressure drop
Discharge down design allows for less pressure loss which gives more power at lower boost levels
Top mount design allows for cooler operation then upside down SC's that conduct heat from engine and are trapped by runners and covers, causing hotter manifold temps and less power per pound of boost
More boost at the "hit" than any other twin-screw
Flat torque curve for incredible acceleration
Fits under factory hood with no modifications
No internal modifications required
No grinding of engine block
SCT X4 flash tool included
Completed installation looks factory installed, not some cobbled together kit with multiple billet adapters
Kits come complete with all necessary parts and hardware for installation
Unique oil level sight glass for easy oil level and quality check, no dipstick to bind or misread
Plug and play wiring with male and female connections

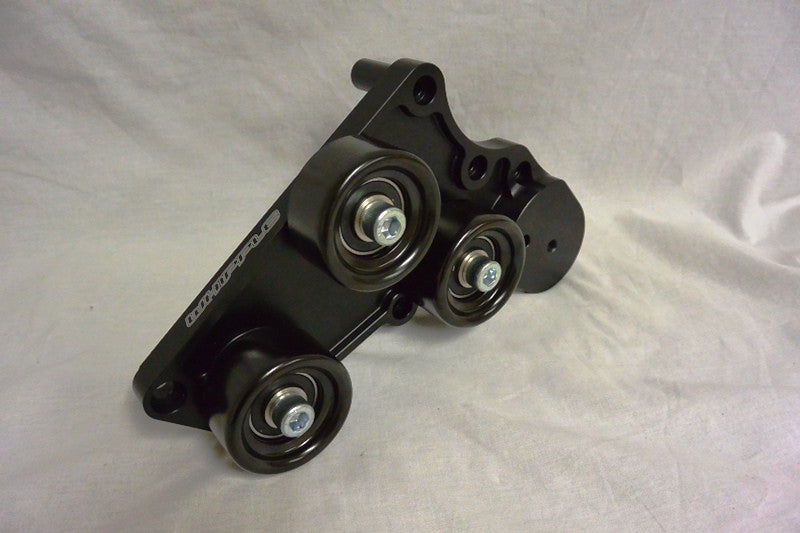

Proven 6-rib belt system with heavy duty spring loaded tensioner and adjustable idler system
Optional 10-rib belt system with matching billet pulleys
Stainless steel tapered jack-shaft with unique plastic cover (or optional carbon fiber) for increased safety
OEM quick connect fittings for easy installation, no ugly brass or steel fittings on the SC
Complete kits and Tuner kits available
Available in wrinkle black, polish, Ford textured blue or any custom color
Easily upgradeable with big cold air intakes and bigger throttle bodies (90mm round or 132mm elliptical)
Instant boost at the touch of the throttle
3 minute pulley changes
Lightweight pocketed SC pulley
- See more at: https://whipplesuperchargers.com/index.php?dispatch=products.view&product_id=322#sthash.YLz4LEBt.dpuf

Supercharger Finish

Stage 2 Polished (SC) (+$805)
Stage 3 Polished (SC, Manifold) (+$1075)
Gloss White (SC Inlet) **Discharge Ano Black (+$805)

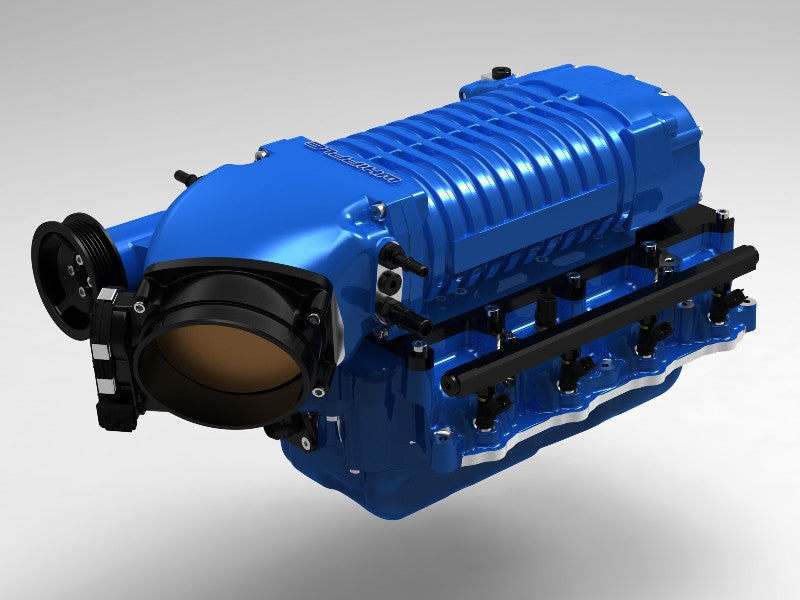

Ford Textured Blue (SC Inlet) **Discharge Ano Black (+$805)

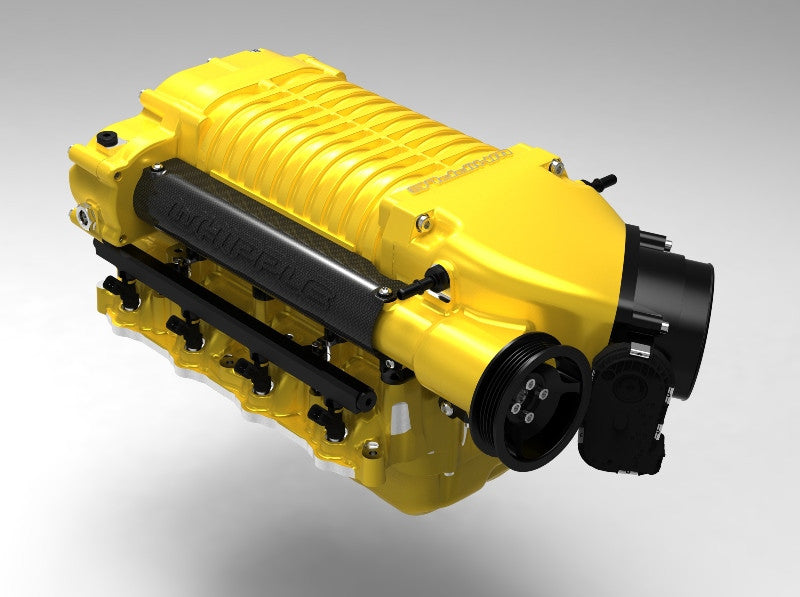

Gloss Yellow (SC Inlet) **Discharge Ano Black (+$805)

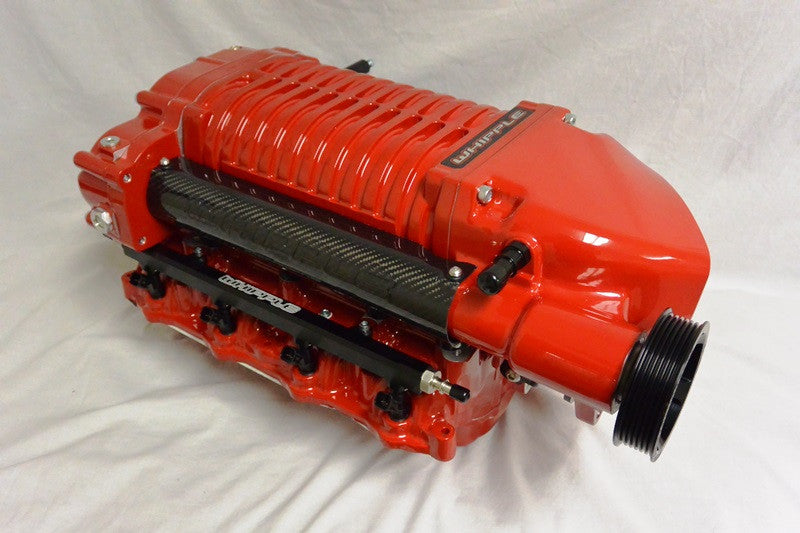

Gloss Red (SC Inlet) **Discharge Ano Black (+$805)

Billet High Flow Throttle Body

Billet 132mm eliptical (+$805)

Electric Fans

Dual 11" Fan Kit (+$540)

Carbon Fibre Kit Upgrade

Carbon Fibre Jack-shaft Cover (+$255)
Carbon Fibre Inlet Tube (+$405)
Carbon inlet tube/Jackshaft cover (+$620)

10-Rib Belt System

10-Rib Upgrade Stock Diameter Balancer (+$2010)
10-Rib Upgrade 20% OD Balancer (+$2010)
10-Rib Upgrade (Balancer Delete) (+$1475)

Tune Delete

Tune and flash tool delete (-$270)

Collections: FORD SUPERCHARGER SYSTEM, MUSTANG, MUSTANG 5.0L 4V, Whipple Superchargers

Type: Supercharger
